Features
- 30 Amp power inlet box installs outdoors near where the generator will be used
- 10 ft. 30 Amp power cord goes from the generator to the inlet box
- 1 in. circuit breakers make customization easy, 2 double-pole 20 Amp breakers and 6 single-pole 15 Amp breakers are included, accepts GFCI and AFCI circuit breakers
- Transfer switch can be used to power one double-pole 30 Amp circuit with a circuit breaker change
- Includes wire connectors and a high-impact non-metallic cover

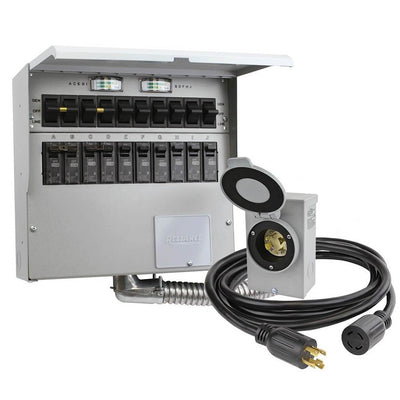

What's in The Box
- 10-Circuit Prewired Transfer Switch
- 10-Foot Power Cord
- Outdoor Painted Steel Power Inlet Box
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 310CRK |
| Brand | Reliance |
| Voltage | 120/240 |
| Max. Generator Running Wattage | 7,500 |
| Phase | Single |
| Frequency | 60 Hertz |
| Connection Type | Male |
| Prongs | Four-Prong |
| Circuits | 6 - 15A/120V
2 - 20A/120V 1 - 20A/240V |
| Max. Single-Pole Circuits | 10 |
| Max. Double-Pole Circuits | 5 |
| Max. Combined Load at 125 Vac | 60 |
| Max. Combined Load at 250 Vac | 30 |
| Power Inlet | L14-30 |
| Recommended Cord Size (Guage) | 10 |
| Counduit Size (in.) | 1 |
| Conduit Length (in.) | 18 |
| Watt Meters | Yes |
| Cabinet Type | Indoor |
| Weight (lbs.) | 25 |
| Dimensions (HxWxD) (in.) | 11 x 1.75 x 4.5
(27.94 x 29.85 x 11.43 cm) |
