Features

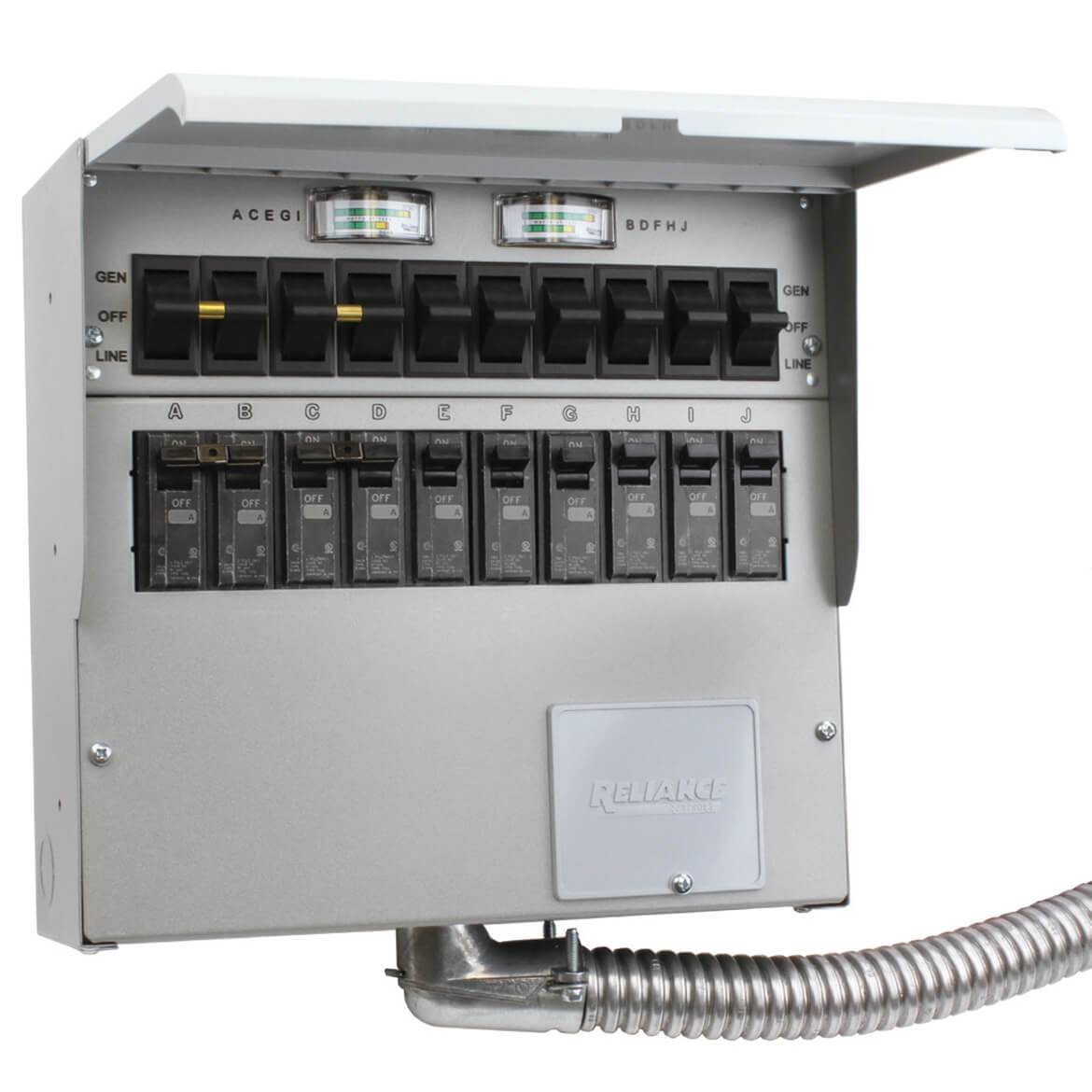

- Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers.
- The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI and GFCI breakers.
- All models include a hinged detachable cover to help protect and finish off the overall look of the product.
- The Pro/Tran 2 is the next generation of Loadsidea manual transfer switch by Reliance Controls.
- These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications.

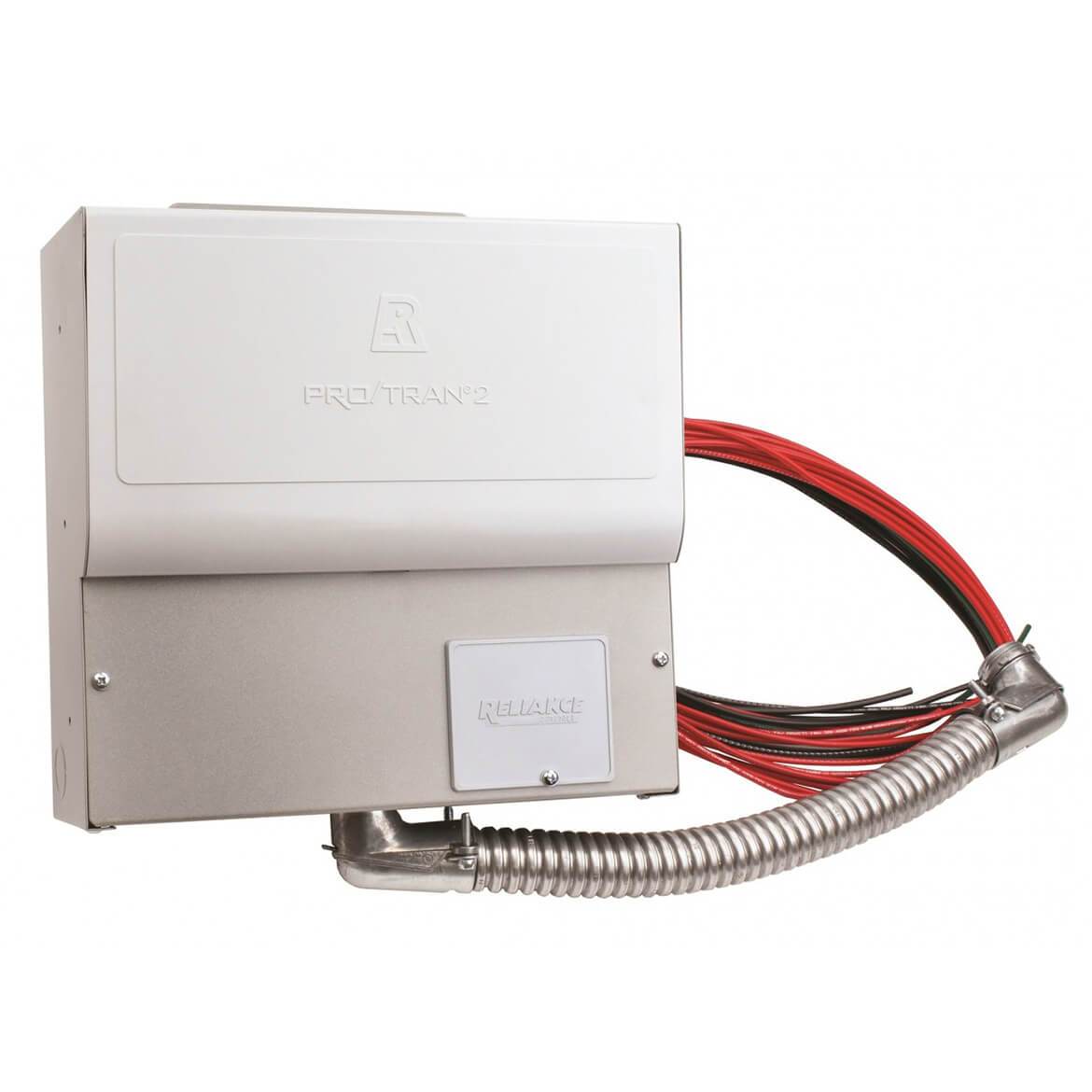

- The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification.
What's in The Box
- 120/240-Volt 30-Amp 10-Circuit Pro/Tran 2 Transfer Switches - 310C
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Model | 310C |
Brand | Reliance |
Voltage | 120/240 |
Max. Generator Running Watts | 7,500 |
Phase | Single |
Max. Single-Pole Circuits | 10 |
Max. Double-Pole Circuits | 5 |
Max. Rating Per Circuit | 2/30A,8/20A |
Max. Combined Load at 125 Vac | 60 |
Max. Combined Load at 250 Vac | 30 |
Power Inlet | None |
Recommended Cord Size (Guage) | 10 |
Conduit Size (in.) | 1 |
Conduit Lenght (in.) | 18 |
Watt Meters | Yes |
Cabinet Type | Yes |
Dimensions (HxWxD) (in.) | 11 x 11.75 x 4.5 |
