Features

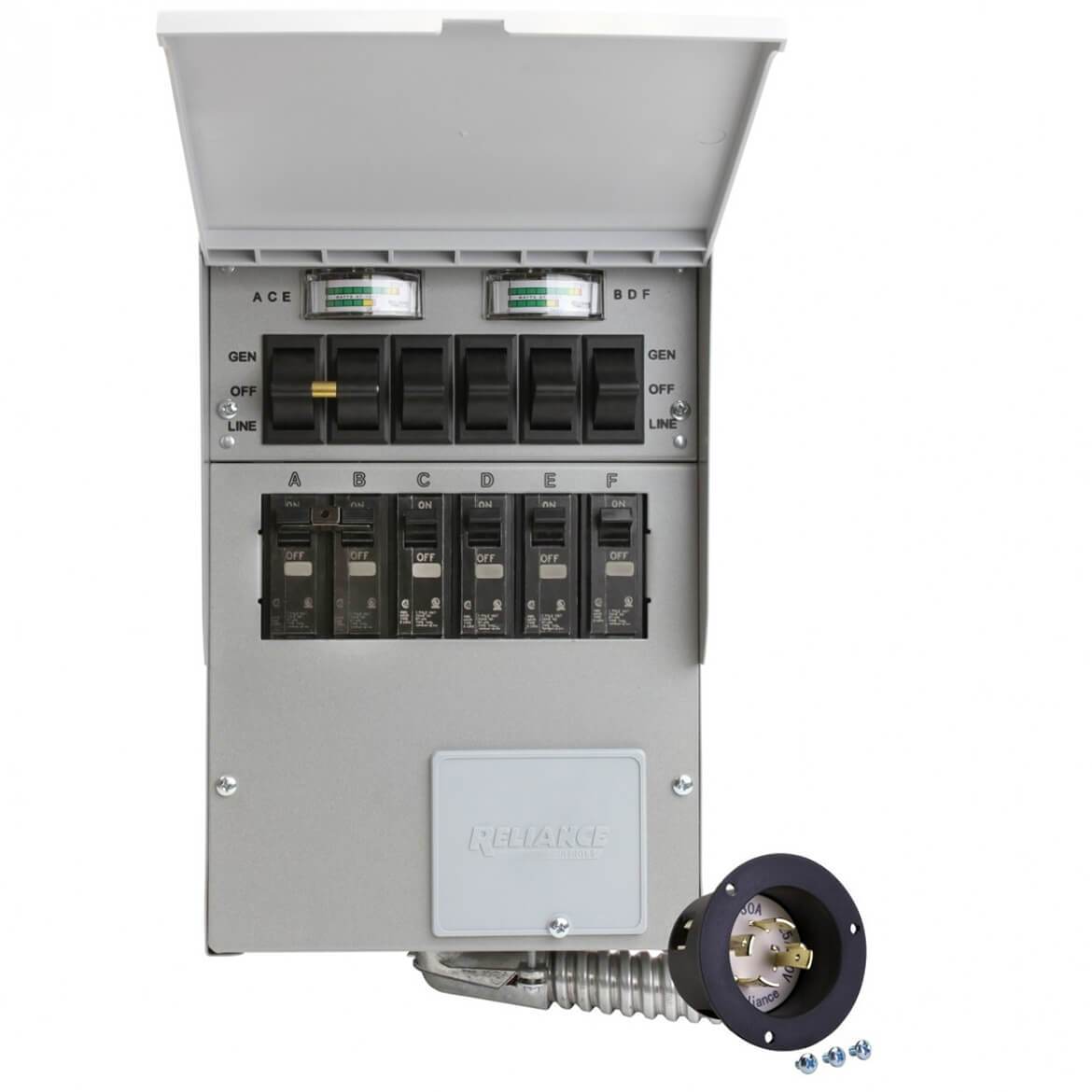

- Pro/Tran 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- (4) 15A 1-Pole and (1) 20A 2-Pole
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet (included)
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs and povides a finished apperance

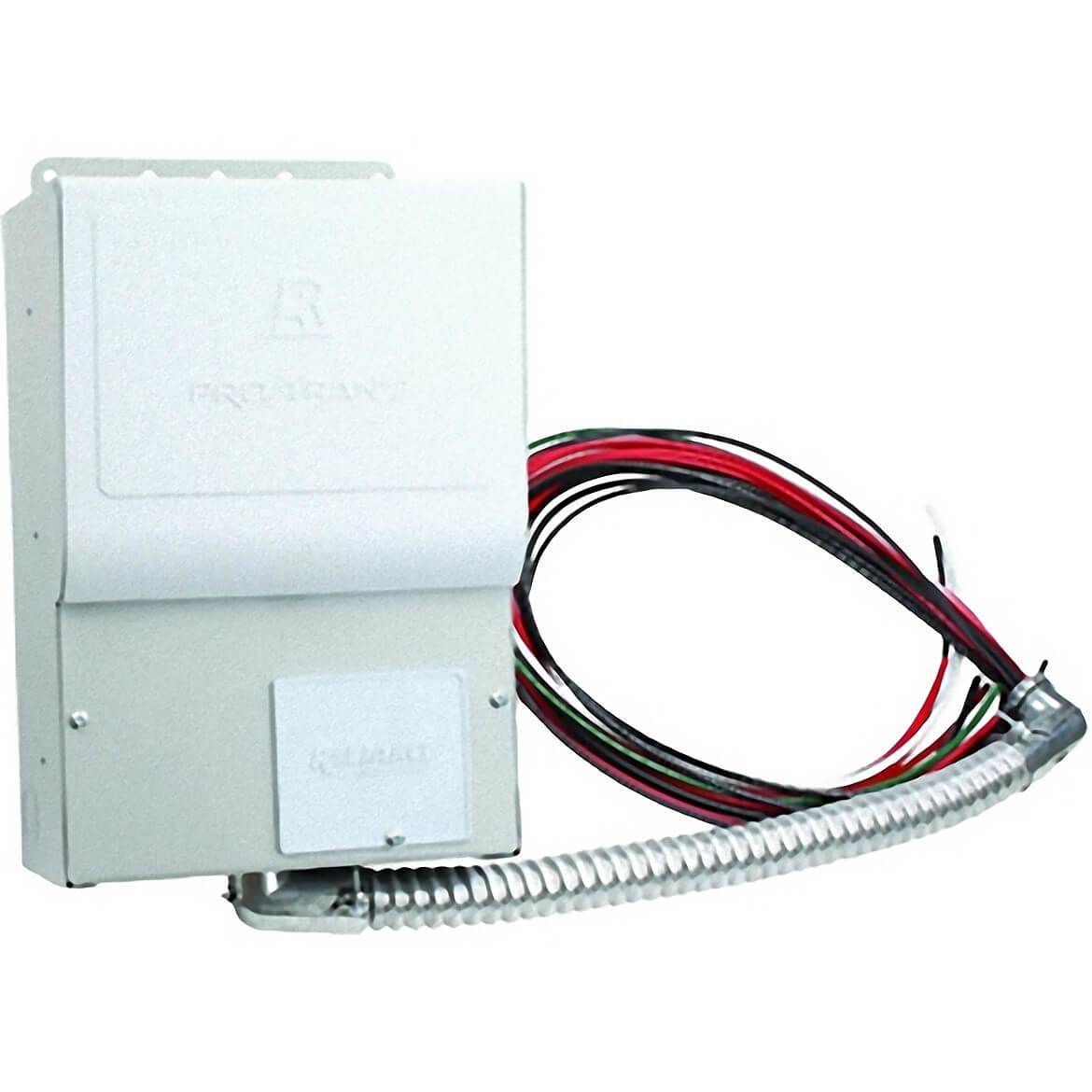

- Powder-Coated Steel Cabinet For Indoor Installation
- 18 Flexible conduit w/ all factory wires clearly marked/colored
- (6) Combination 1/2 and 3/4 knockouts for easier installation
- Easily re-configured in the field for multiple 2-pole circuits
- Safety and Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box

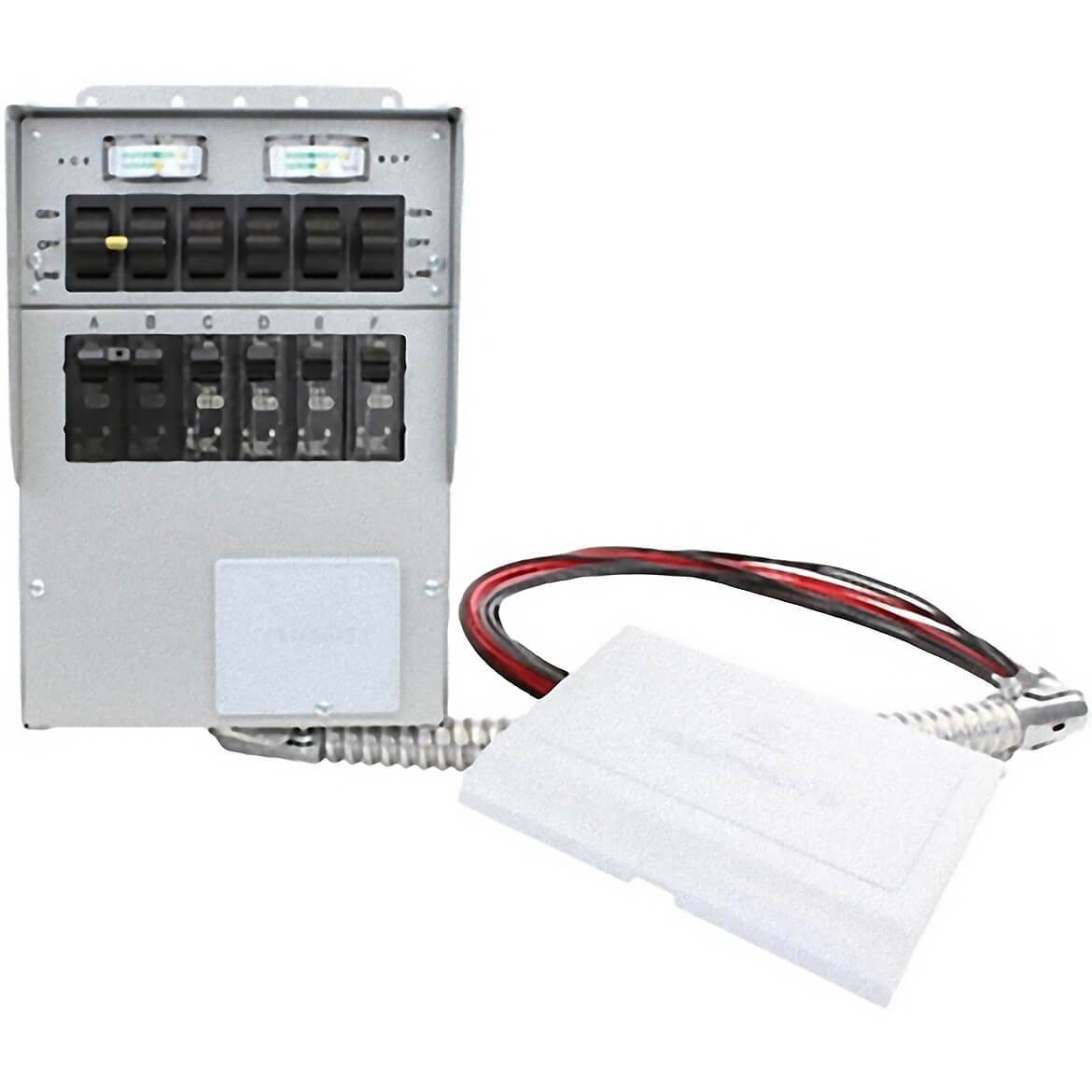

- 120/240-Volt 30-Amp 6-Circuit Indoor Transfer Switch - 306A
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 306A |
| Brand | Reliance |
| Max. Generator Running Watts | 7,500 |
| Phase | Single |
| Frequency | 60 |
| Circuits | 4 - 15A/120V
1 - 20A/240V |
| Max. Single-Pole Circuits | 6 |
| Max. Double-Pole Circuits | 3 |
| Max. Combined Load at 125 Vac | 60 |
| Max. Combined Load at 250 Vac | 30 |
| Power Inlet | L14-30 |
| Recommended Cord Size (Guage) | 10 |
| Conduit Size (in.) | 3/4 |
| Conduit Length (in.) | 16 |
| Watt Meters | Yes |
| Dimensions (HxWxD) (in.) | 11.25 x 7.75 x 4.5
(28.58 x 19.69 x 11.43 cm) |
| Cabinet Type | Indoor |
