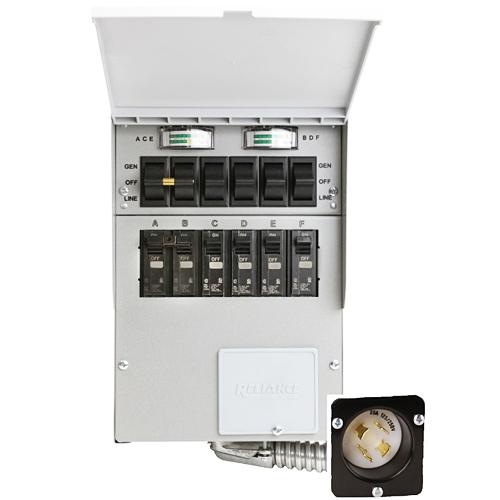

Reliance 206A 120/240-Volt 20-Amp 6-Circuit Pro/Tran Indoor Transfer Switch

Reliance 206A 120/240-Volt 20-Amp 6-Circuit Pro/Tran Indoor Transfer Switch

SKU: 206A

Condition: New

Regular price $464.00 + Free Shipping
/

Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To

1-3 DAY DELIVERY!!!

Shipping from 2 locations to serve you better. CA. and TN.

We offer FREE ground shipping on all orders OVER $199 ( 48 Contiguous States Only) All other orders under $199 will have a $8.95 flat rate ground shipping. Express Shipping is based on your order's weight and your shipping address. All other locations outside of the Continental US will receive discounted rates

Features
  • Pro/Tran 2 20-Amp 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • (4) 15A 1-Pole and (1) 20A 2-Pole
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs and povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18 Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2 and 3/4 knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety and Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
  • 120/240-Volt 20-Amp 6-Circuit Indoor Transfer Switch - 206A
  • Owners Manual
Warranty
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model 206A
Brand Reliance
Max. Wattage 5,000
Voltage 120/240
Phase Single
Frequency 60
Rated Amps 20
Max. Generator Input Amps 20
Conduit Length (in.) 18
Circuits 4 - 15A/120V
1 - 20A/240V
Circuit Breaker Protection Each Circuit
Circuits Breakers 6
UL Listed Yes
Weight (lbs.) 9 (4.08 Kilograms)
Dimensions (LxWxH) (in.) 11.25 x 11.75 x 4.5
(28.58 x 29.85 x 11.43 cm)
