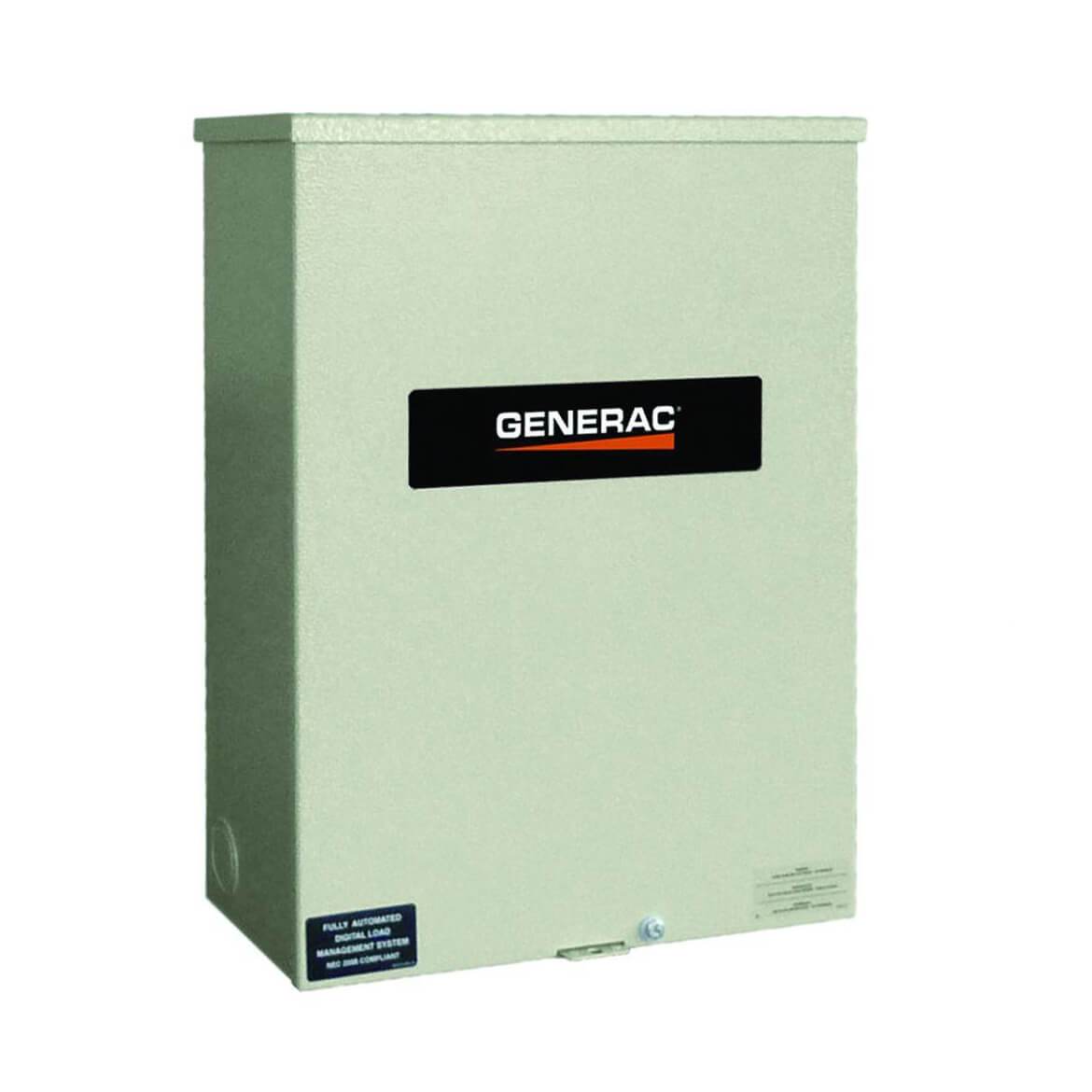

Generac RXSC100A3 120/240-Volt 100-Amp NEMA 3R CUL Smart Transfer Switch

Generac RXSC100A3 120/240-Volt 100-Amp NEMA 3R CUL Smart Transfer Switch

SKU: GNC-RXSC100A3

Condition: New

Regular price $409.00 + Free Shipping
/

Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To

1-3 DAY DELIVERY!!!

Shipping from 2 locations to serve you better. CA. and TN.

We offer FREE ground shipping on all orders OVER $199 ( 48 Contiguous States Only) All other orders under $199 will have a $8.95 flat rate ground shipping. Express Shipping is based on your order's weight and your shipping address. All other locations outside of the Continental US will receive discounted rates

Features
  • Generac automatic transfer switches are housed in an aluminum NEMA/CUL type 3R enclosure, with electrostatically applied and baked powder paint.
  • Heavy duty Generac contactor is a CUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands.
  • Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.
  • When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available.
  • Cycles power on and off as needed for different appliances.
What's in The Box
  • Generac 120/240-Volt 100-Amp NEMA 3R CUL Smart Transfer Switch - RXSC100A3
  • Owner's Manual
Warranty
  • 3-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku RXSC100A3
Brand Generac
Voltage 120/240V
Phase Single-Phase
Frequency 60 Hertz
Rated Amps 100 Amps
Enclosure NEMA 3R
Transfer Switch Style Standard Installation
Max Utility Input 100 Amps
Max Generator Input 100 Amps
Maximum Wattage 24000 Watts
Product Dimensions (LxWxH)(In.) 20 x 14.6 x 7 In.
Shiping Weight (lbs) 20 lbs
