Features
- Tri Fuel – Runs on Gasoline, Liquid Propane and Natural Gas Fuel for your convenience.
- 10.5-Hour Runtime when running on gasoline and 5-Hour Runtime on 20lb LP tank when 50% of power is being used.
- Easy-to-Use Electric Start – Rocker switch provides reliable and hassle-free start ups (Battery included).
- Efficient OHV Engine – 500cc OHV engine with EFI technology optimizes fuel efficiency and requires less maintenance
- LP connector hose Included – 4ft LP tank connection
- Handle & Wheel Kit – Ergonomic handle and never-flat wheel kit included for portability.
- 1 ¼” steel-tube cradle for added durability and strength.
- Covered outlets provide added protection from the environment and rugged working conditions.
- Low-oil level shutdown automatically safeguards engine from damage.
- COsense Technology – STOPS, ALERTS, SAVES. Powerful protection against hazardous carbon monoxide.
- HomeLink Manual Transfer Switch compatible designed to work with HomeLink manual transfer switches for safe home backup power.
What's in The Box

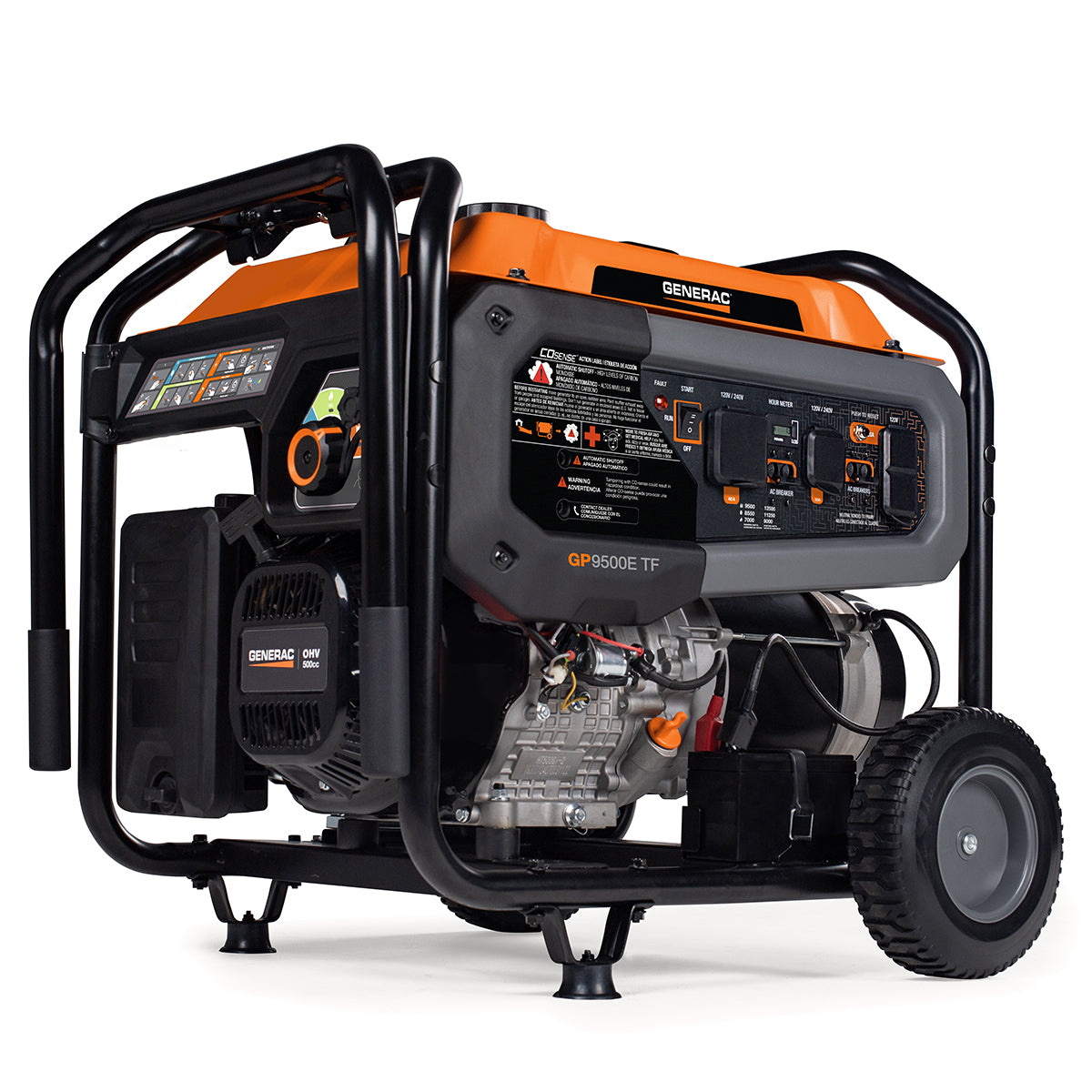

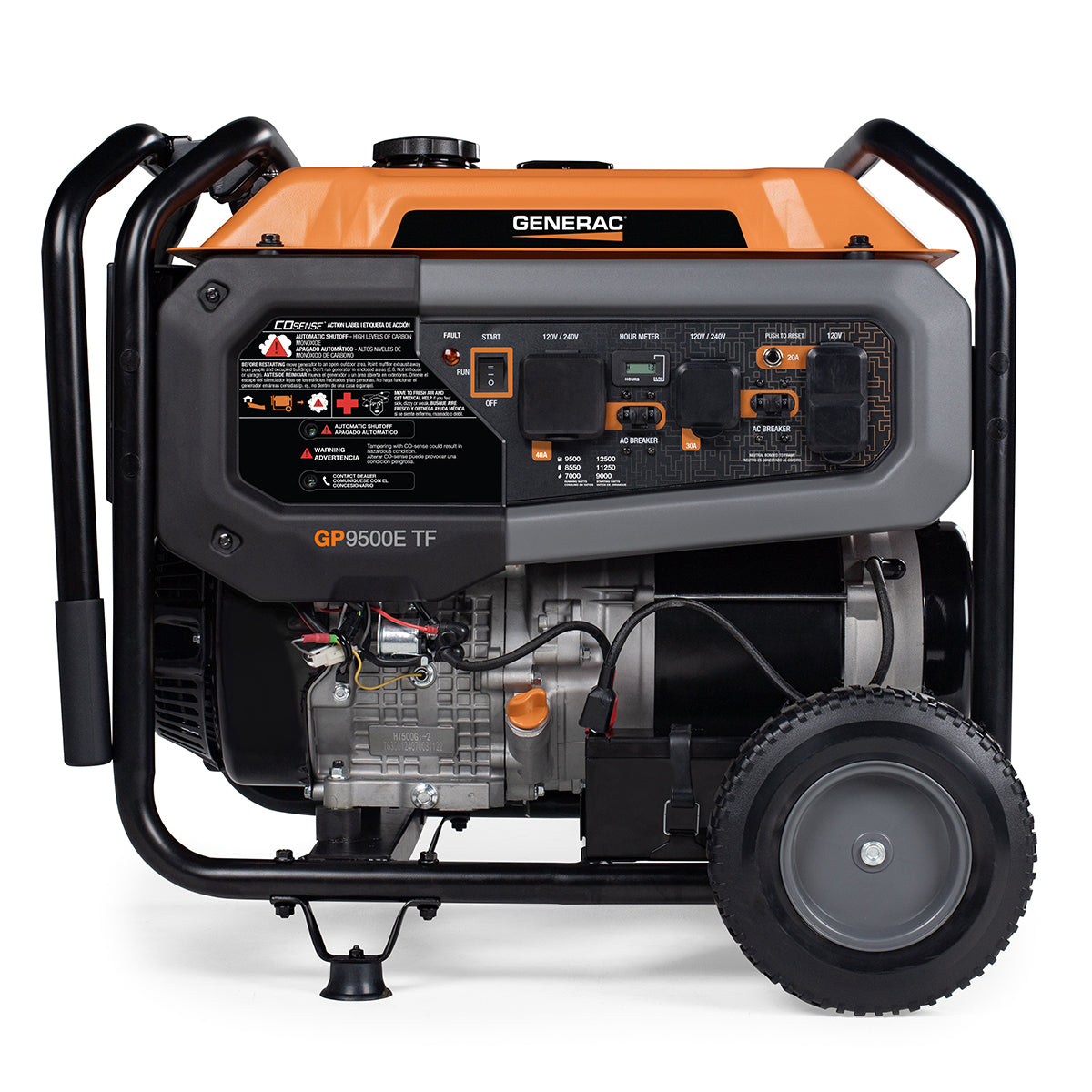

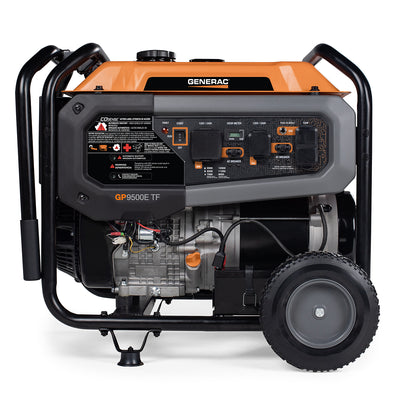

- Generac GP9500E - Tri Fuel Portable Generator, 49ST
- Owner's Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | GP9500E |
| Model Number | 8063 |
| Configuration | 49-State |
| Running Watts (Gas / LP / NG) | 9500 / 8550 / 7000 |
| Starting Watts (Gas / LP / NG) | 12500 / 11250 / 9000 |
| Rated AC Voltage | 120/240 VAC |
| Rated AC Frequency | 60 Hz |
| Rated 120/240 VAC Amperage | 79.2 / 39.6 (Gas) |
| Engine Displacement | 500cc |
| Engine Type | OHV |
| Engine RPM | 3600 |
| Recommended Oil | 10W-30 / SAE 30 |
| Oil Capacity qt (L) | 1.06 (1.0) |
| Lubrication Method | Splash |
| Automatic Voltage Regulation (AVR) | Yes |
| Choke Location | On Engine |
| Fuel Shut Off | On Fuel Tank |
| Starting Method | Electric Start / Recoil Pull Start |
| Battery Included | Yes |
| Battery Type | Lead Acid (12V DC, 9Ah) |
| Battery Part No. | A0006353770 |
| Battery Dimensions | 5.94" x 2.56" x 3.70" |
| Low Oil Shutdown | Yes |
| Neutral Bonded to Ground | Yes |
| Start Switch Type | Off/Run/Start |
| Start Switch Location | On Control Panel |
| Fuel Gauge | Yes |
| Fuel Tank Capacity gal (L) | 7.5 (28.4) |
| Run Time at 25% (Hours) (Gas / LP 20lb Tank) | 14 / 6 |
| Run Time at 50% (Hours) (Gas / LP 20lb Tank) | 9.5 / 4.5 |
| Handle Style | Dual Grip, Single Folding with Lock Pin |
| Wheel Type | 9.5" Never Flat |
| Warranty - Residential | 3 Year Limited |
| Warranty - Commercial | 2 Year Limited |
| Included | Engine oil, handle & wheel kit, battery, owner's manual, LP hose with primary regulator to connect 20lb LP tank |
| Length in (mm) | 27.5 (698) |
| Width in (mm) | 27.1 (688) |
| Height in (mm) | 27.6 (703) |
| Extended Length in (mm) | 44.9 (1141) |
| Carton Length in (mm) | 28.5 (725) |
| Carton Width in (mm) | 21.7 (550) |
| Carton Height in (mm) | 29.1 (740) |
| Unit Weight lbs (kg) | 219 (99.3) |
| Shipping Weight lbs (kg) | 234 (106) |
