Features
- Tri Fuel – Runs on Gasoline, Liquid Propane and Natural Gas Fuel for your convenience.
- 10.5-Hour Runtime when running on gasoline and 5-Hour Runtime on 20lb LP tank when 50% of power is being used.
- Easy-to-Use Electric Start – Rocker switch provides reliable and hassle-free start ups (Battery included).
- Efficient OHV Engine – 500cc OHV engine with EFI technology optimizes fuel efficiency and requires less maintenance
- LP connector hose Included – 4ft LP tank connection
- Handle & Wheel Kit – Ergonomic handle and never-flat wheel kit included for portability.
- 1 ¼” steel-tube cradle for added durability and strength.
- Covered outlets provide added protection from the environment and rugged working conditions.
- Low-oil level shutdown automatically safeguards engine from damage.
- COsense Technology – STOPS, ALERTS, SAVES. Powerful protection against hazardous carbon monoxide.
- HomeLink Manual Transfer Switch compatible designed to work with HomeLink manual transfer switches for safe home backup power.
What's in The Box

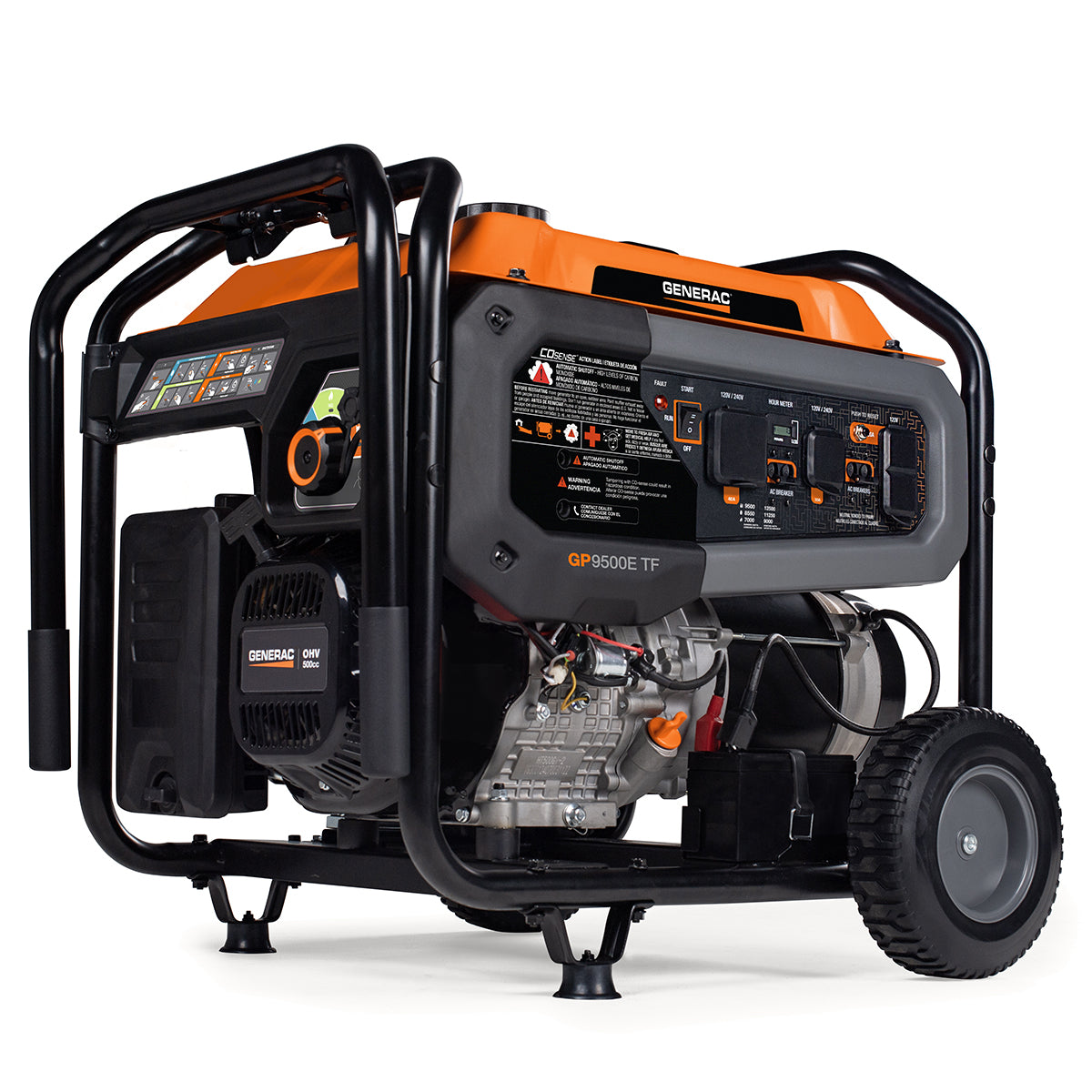

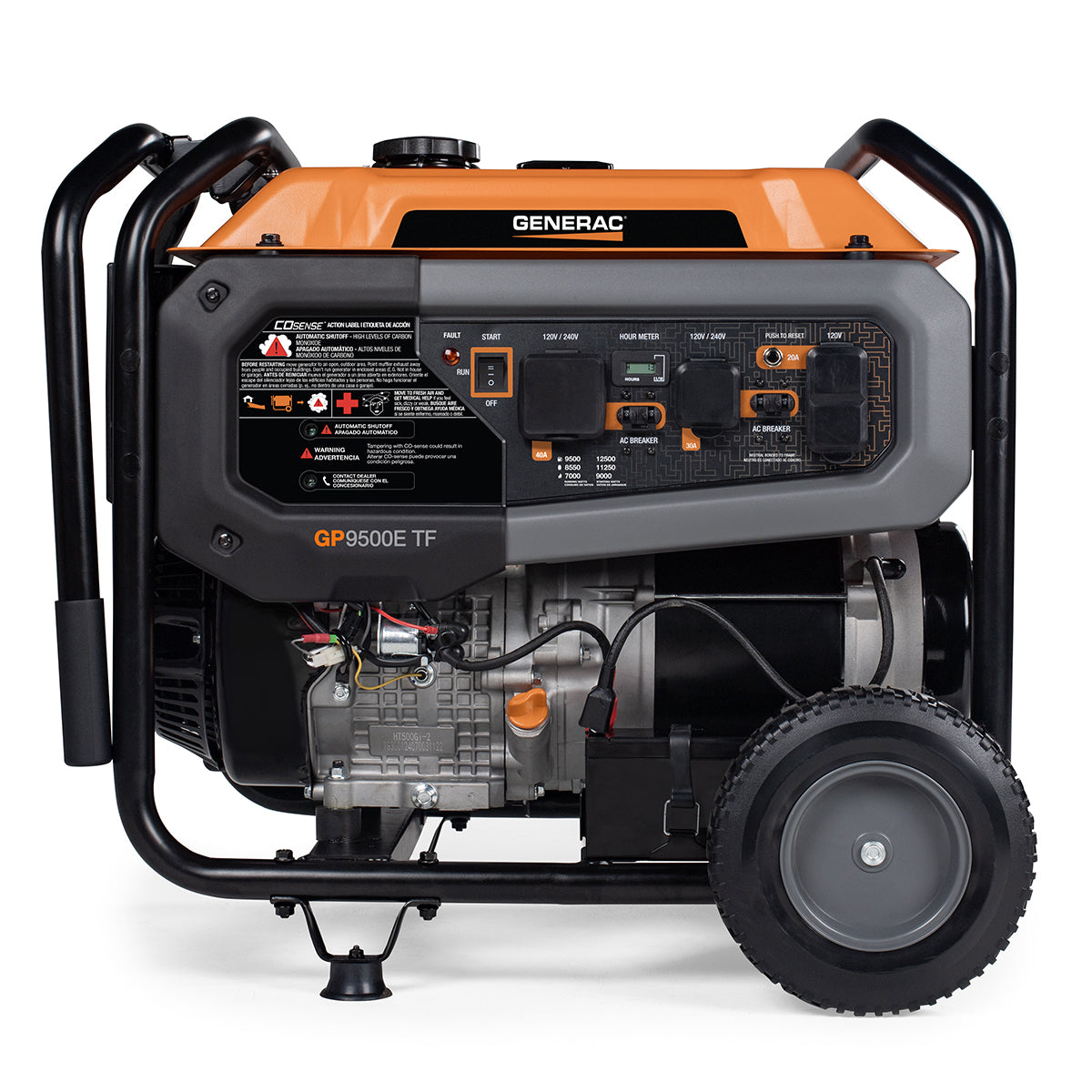

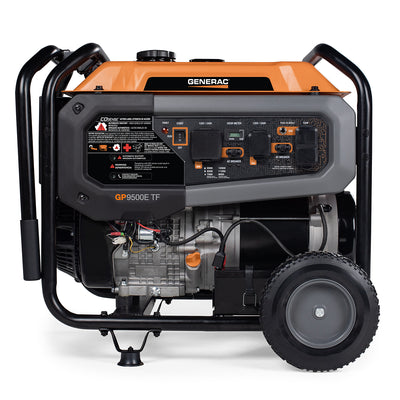

- Generac GP9500E - Tri Fuel Portable Generator, 50ST
- Owner's Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
SKU | GP9500E |
Model Number | 8061 |
Configuration | 50-State |
Running Watts (Gas / LP / NG) | 9500 / 8550 / 7000 |
Starting Watts (Gas / LP / NG) | 12500 / 11250 / 9000 |
Rated AC Voltage | 120/240 VAC |
Rated AC Frequency | 60 Hz |
Rated 120/240 VAC Amperage | 79.2 / 39.6 (Gas) |
Engine Displacement | 500cc |
Engine Type | OHV |
Engine RPM | 3600 |
Recommended Oil | 10W-30 / SAE 30 |
Oil Capacity qt (L) | 1.06 (1.0) |
Lubrication Method | Splash |
Automatic Voltage Regulation (AVR) | Yes |
Choke Location | On Engine |
Fuel Shut Off | On Fuel Tank |
Starting Method | Electric Start / Recoil Pull Start |
Battery Included | Yes |
Battery Type | Lead Acid (12V DC, 9Ah) |
Battery Part No. | A0006353770 |
Battery Dimensions | 5.94" x 2.56" x 3.70" |
Low Oil Shutdown | Yes |
Neutral Bonded to Ground | Yes |
Start Switch Type | Off/Run/Start |
Start Switch Location | On Control Panel |
Fuel Gauge | Yes |
Fuel Tank Capacity gal (L) | 7.5 (28.4) |
Run Time at 25% (Hours) (Gas / LP 20lb Tank) | 14 / 6 |
Run Time at 50% (Hours) (Gas / LP 20lb Tank) | 9.5 / 4.5 |
Handle Style | Dual Grip, Single Folding with Lock Pin |
Wheel Type | 9.5" Never Flat |
Warranty - Residential | 3 Year Limited |
Warranty - Commercial | 2 Year Limited |
Included | Engine oil, handle & wheel kit, battery, owner's manual, LP hose with primary regulator to connect 20lb LP tank |
Length in (mm) | 27.5 (698) |
Width in (mm) | 27.1 (688) |
Height in (mm) | 27.6 (703) |
Extended Length in (mm) | 44.9 (1141) |
Carton Length in (mm) | 28.5 (725) |
Carton Width in (mm) | 21.7 (550) |
Carton Height in (mm) | 29.1 (740) |
Unit Weight lbs (kg) | 219 (99.3) |
Shipping Weight lbs (kg) | 234 (106) |
