SKU: XP20HPE

Condition: New

Regular price $549.00 + Free Shipping
/

Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To

1-3 DAY DELIVERY!!!

Shipping from 2 locations to serve you better. CA. and TN.

We offer FREE ground shipping on all orders OVER $199 ( 48 Contiguous States Only) All other orders under $199 will have a $8.95 flat rate ground shipping. Express Shipping is based on your order's weight and your shipping address. All other locations outside of the Continental US will receive discounted rates

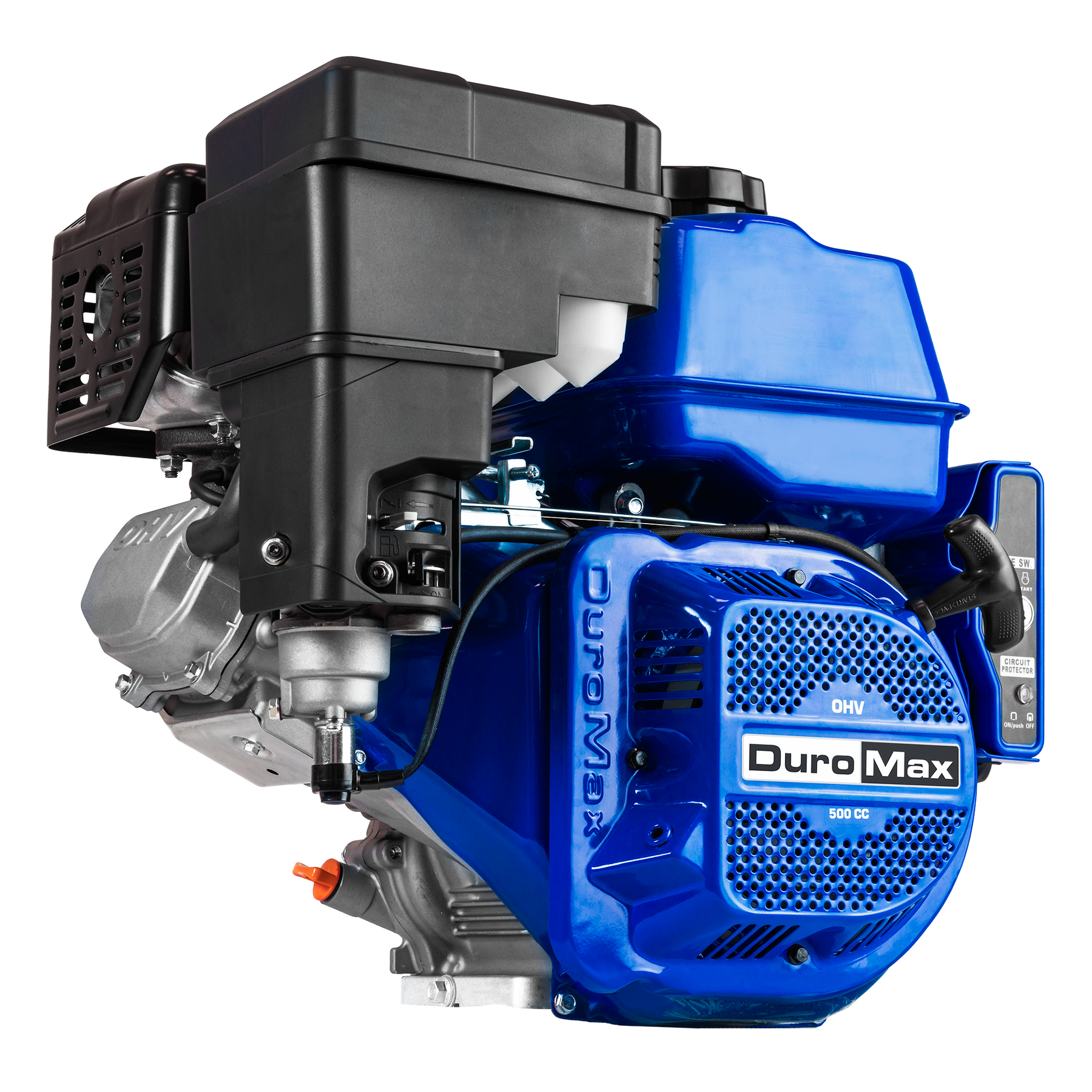

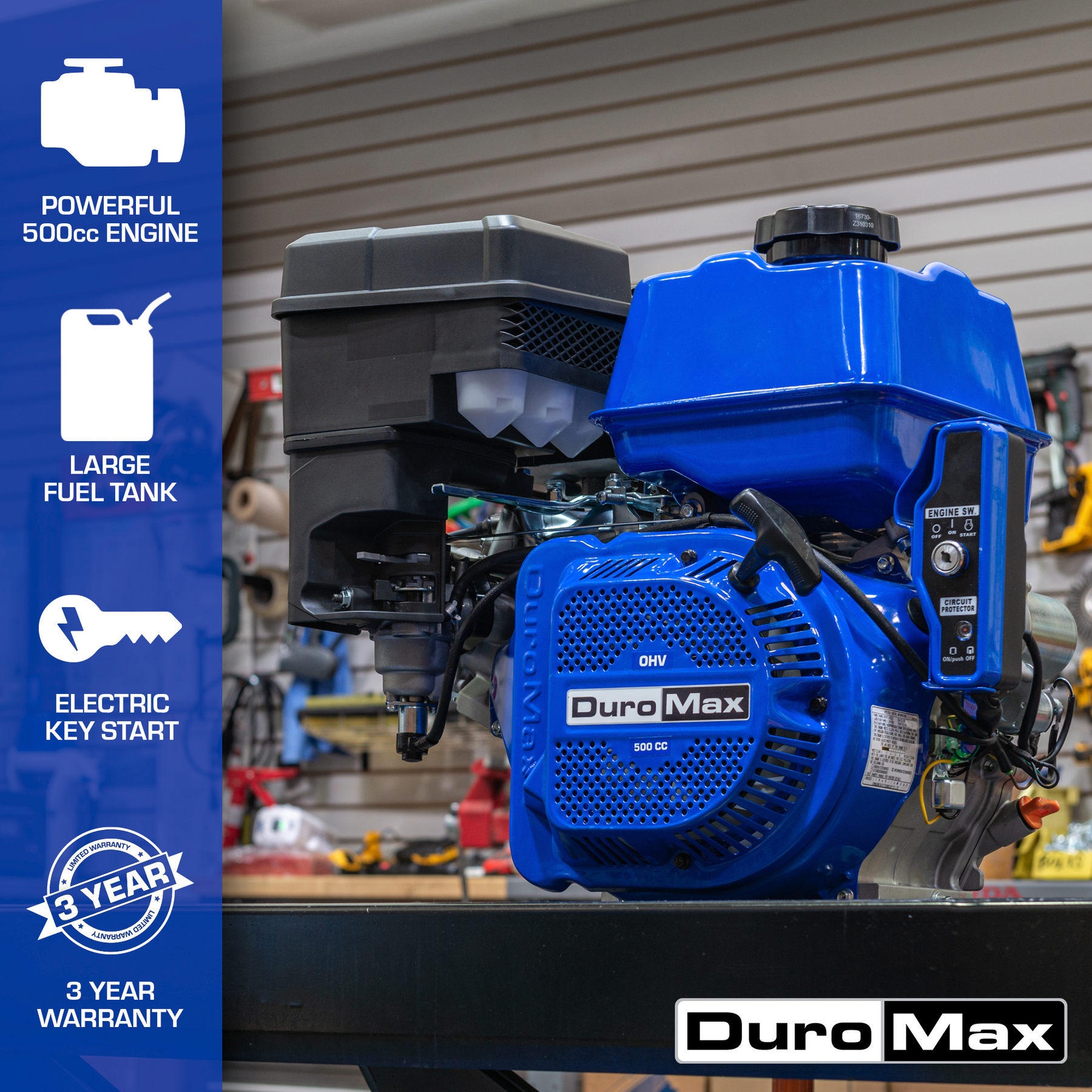

The DuroMax XP20HPE is our largest and most powerful single cylinder engine we offer; this 500cc 4-stroke OHV powerhouse is suitable for multiple heavy-duty applications including go karts, pressure washers, trailer mounted-mobile carwashes, log splitters, roto tillers- cultivators, and water/trash transfer pumps. This engine is equipped with convenient features like a large 1.35-gallon gas tank for longer runtimes, an electric start feature for easier startups, an E-Z pull recoil starter for startup flexibility, and EPA and CARB approved for safe mandated use.


Features
  • 500cc 4-Stroke OHV engine

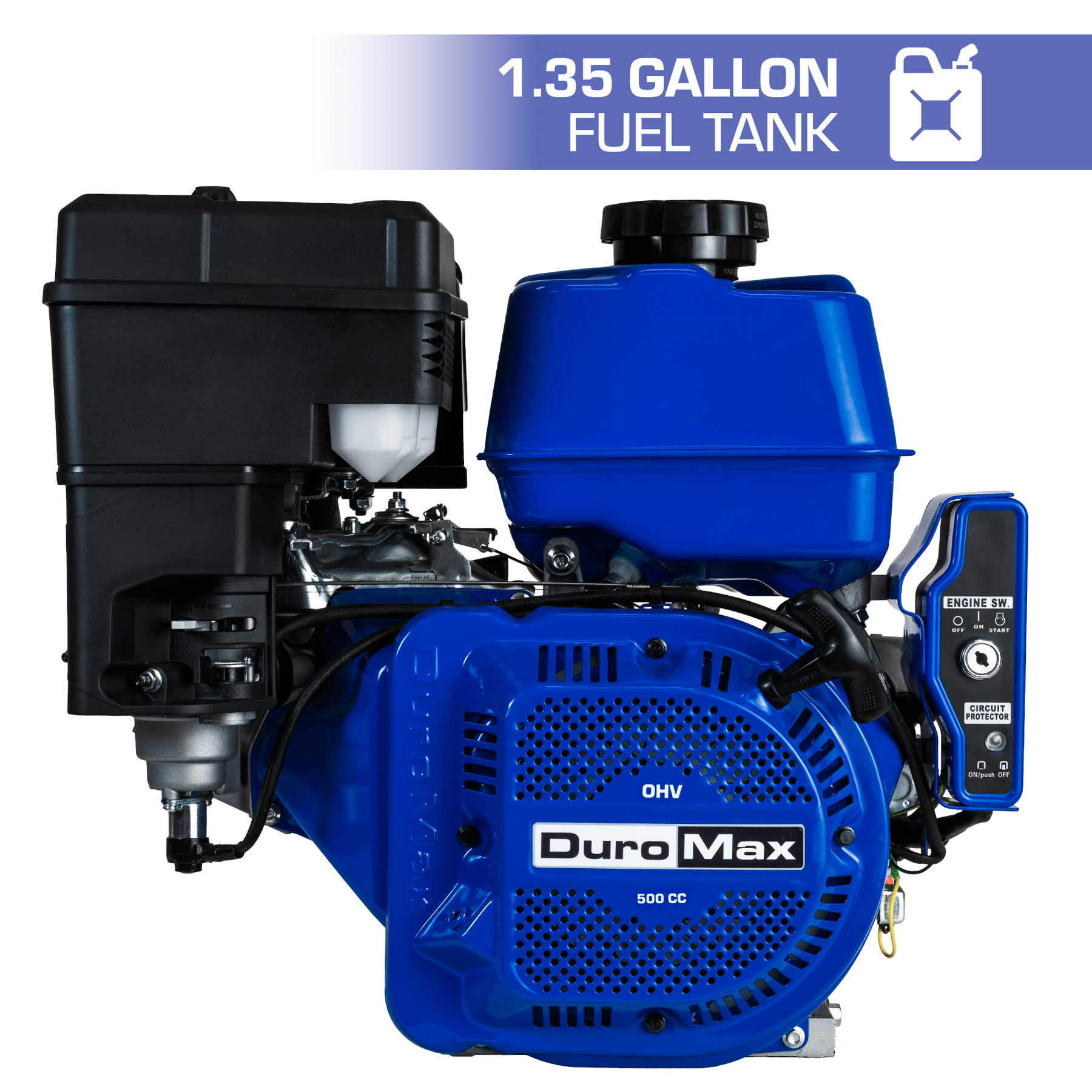

  • Large 1.35-gallon fuel tank
  • Runs on standard 87 Octane gasoline

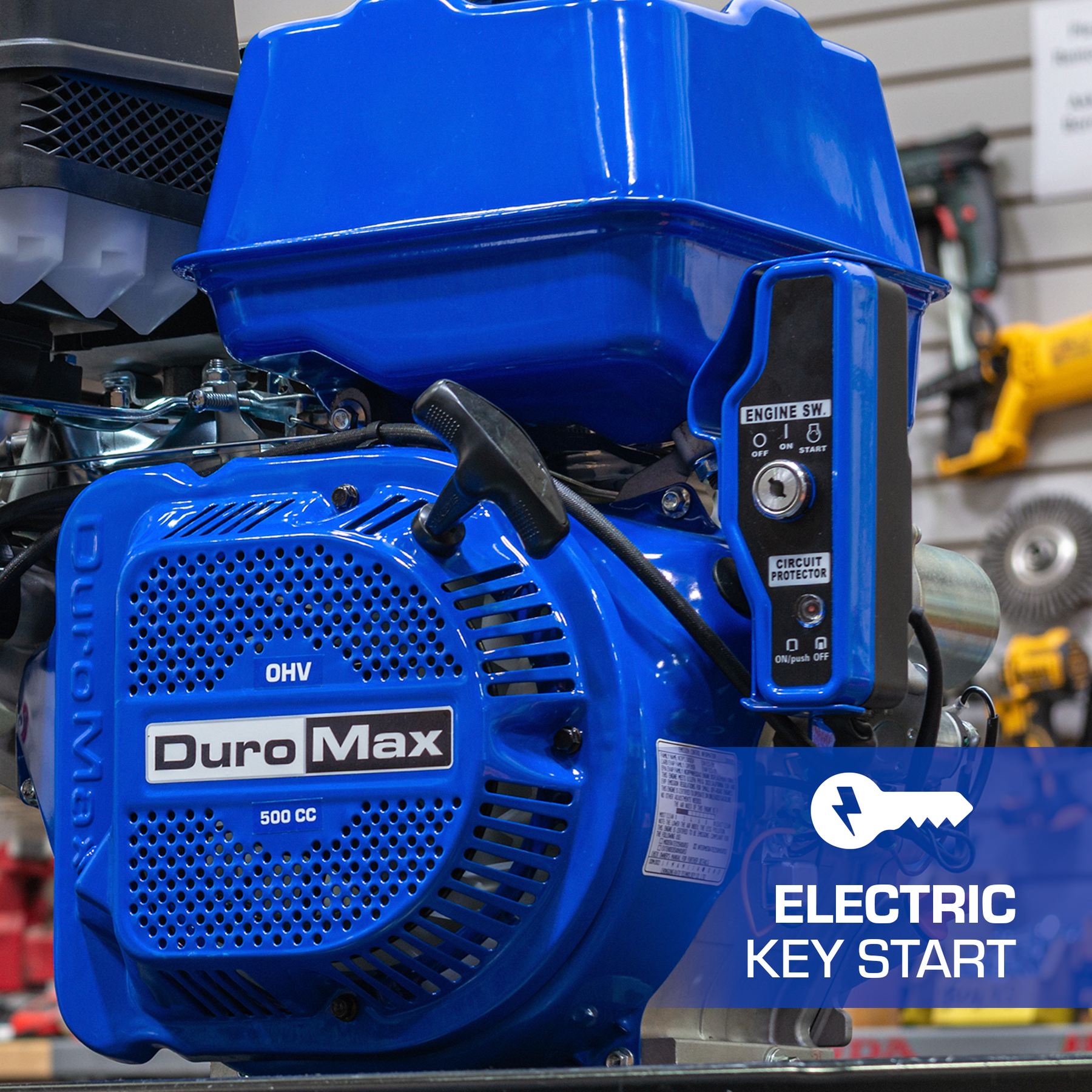

  • Electric start key switch box
  • E-Z pull recoil starter
  • Air Cleaner: Dual, semi-dry, oil bath
  • EPA and CARB approved for safe mandated use

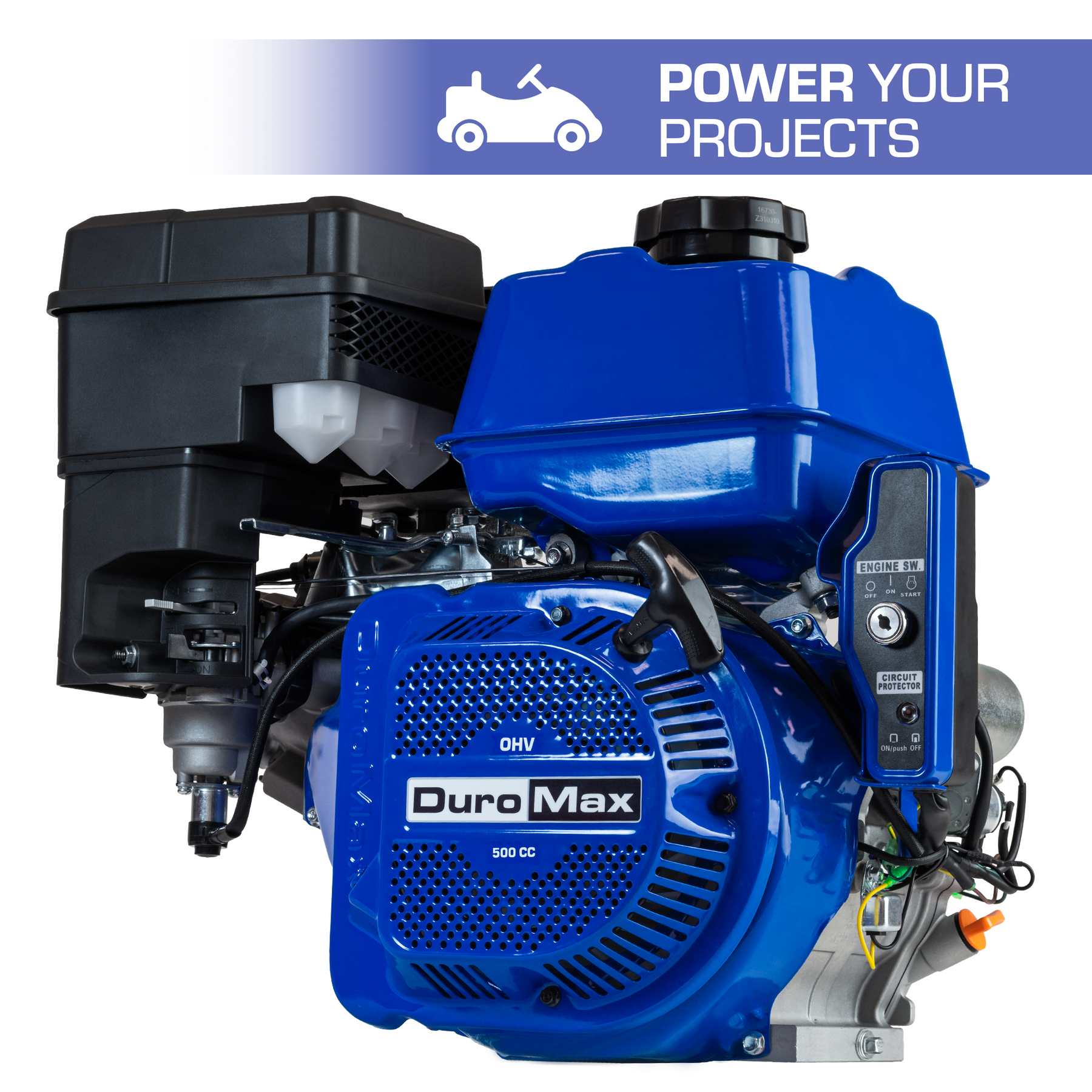

  • Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump

What's in The Box
  • DuroMax XP20HPE Engine
  • Battery Leads
  • Keys
  • Spark Plug Wrench
  • Oil Funnel
  • Owner's Manual
Warranty
  • 3-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Manufacturer DuroMax Power Equipment
Part # XP20HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 500 cc
Bore 94 mm
Stroke 72 mm
Max Output 4000 rpm
Max Torque 22.87 Ft/lbs (31 N·m) @ 2500 rpm
Shaft Orientation Horizontal

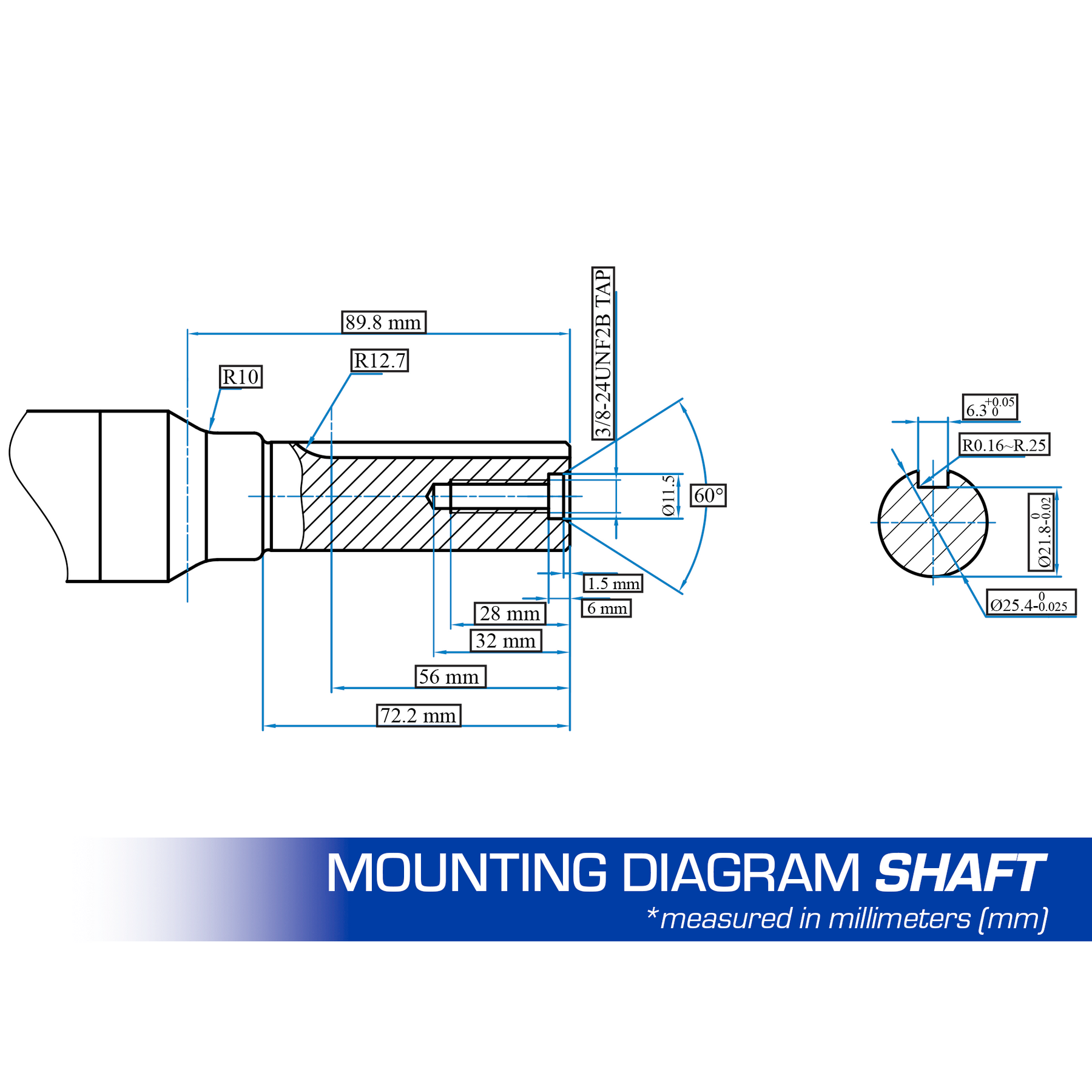

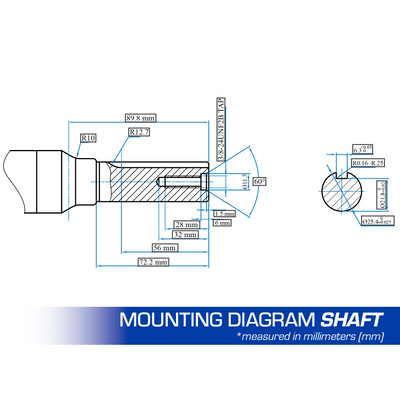

Shaft Size 1” diameter, 3.535” long, 1/4” keyway
Shaft End 3/8” size 24 UNF – 2B drilled and tapped
Shaft Rotation Counter-Clockwise

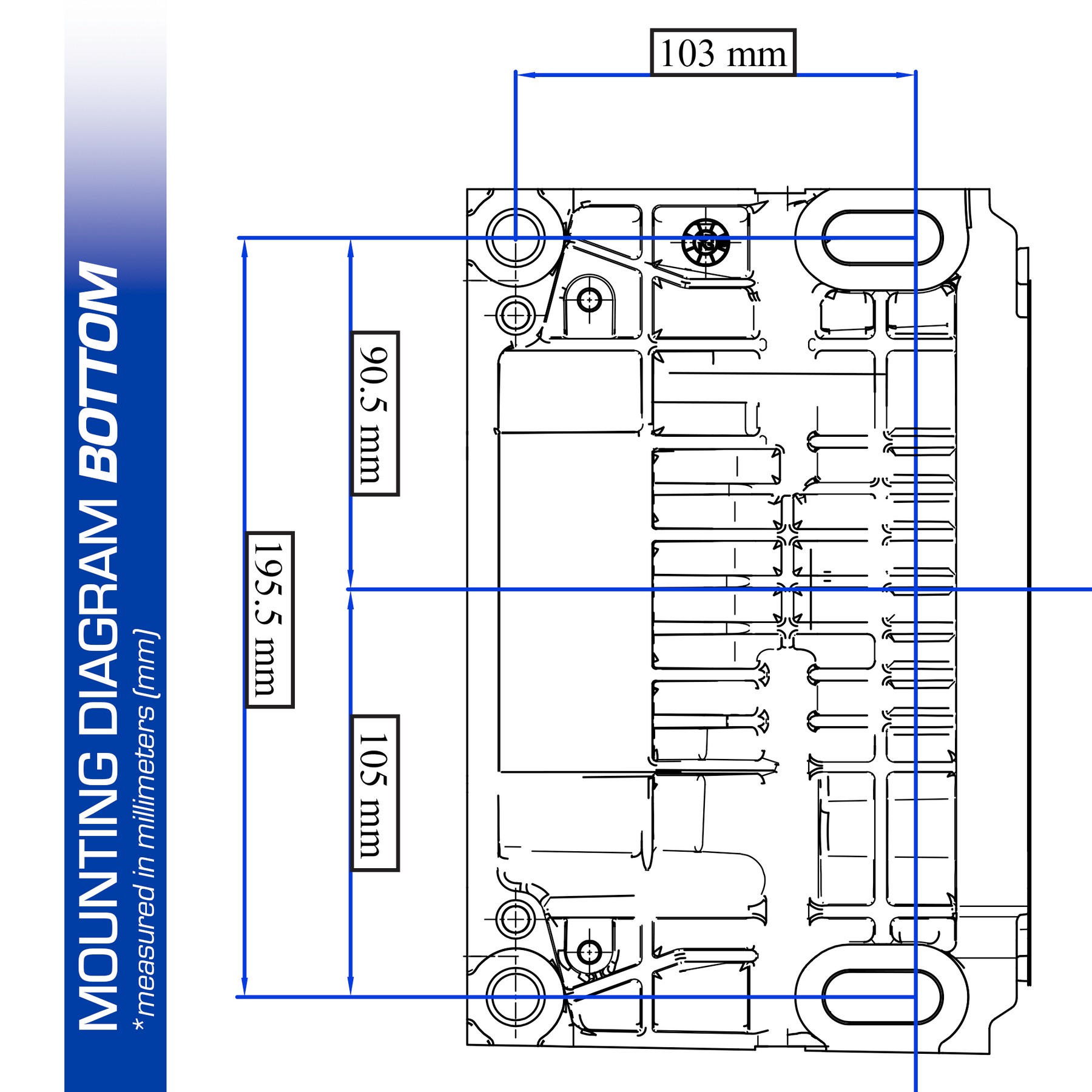

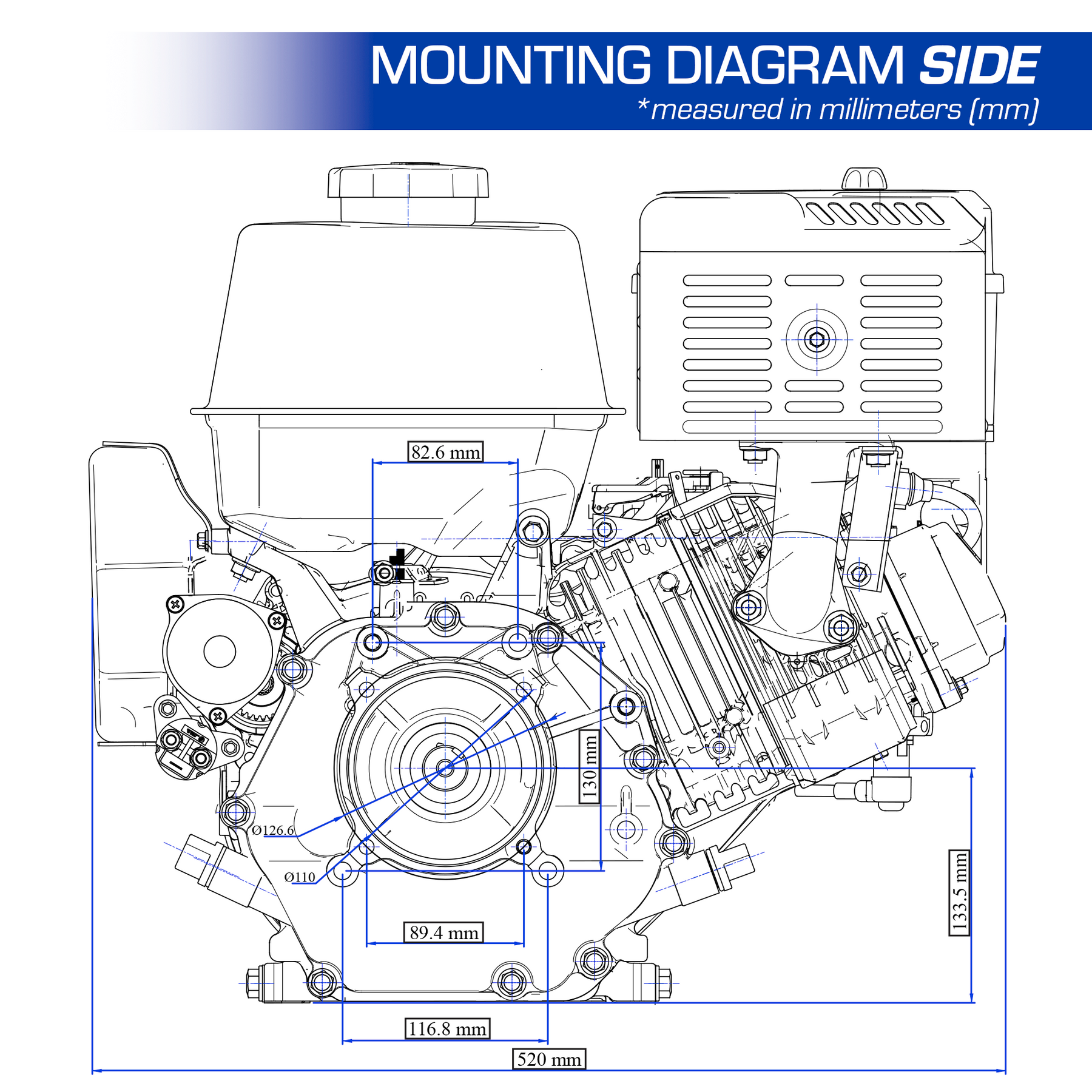

Measurement from Center of Shaft to Base 5.26”
Fuel Tank Capacity 1.35 gallons
Fuel Types Gasoline
Fuel Delivery System Carburetor
Average runtime on gasoline 2 hours
Starting type Recoil/Electric Start
Electric Start Yes
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 40.5 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 21.5” L x 17” W x 19” H
Weight 83 lbs
UPC 811640016876
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
