Features

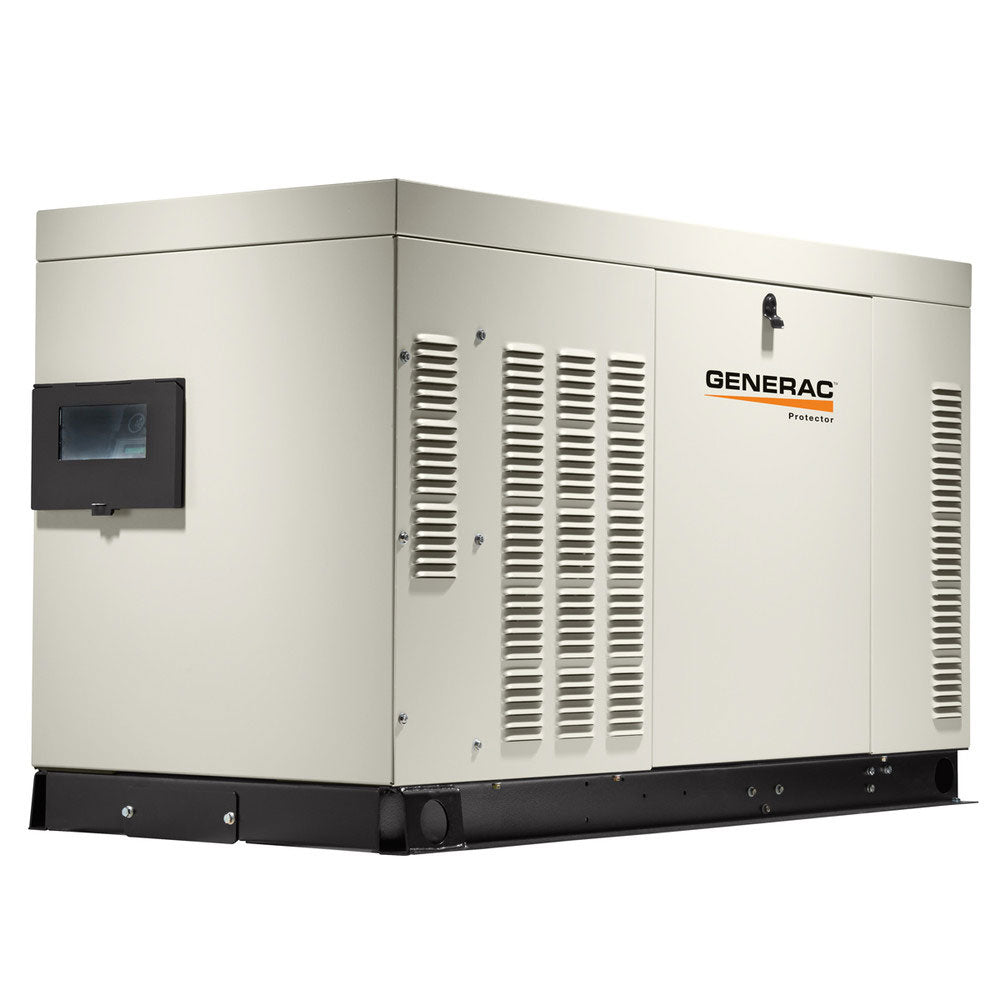

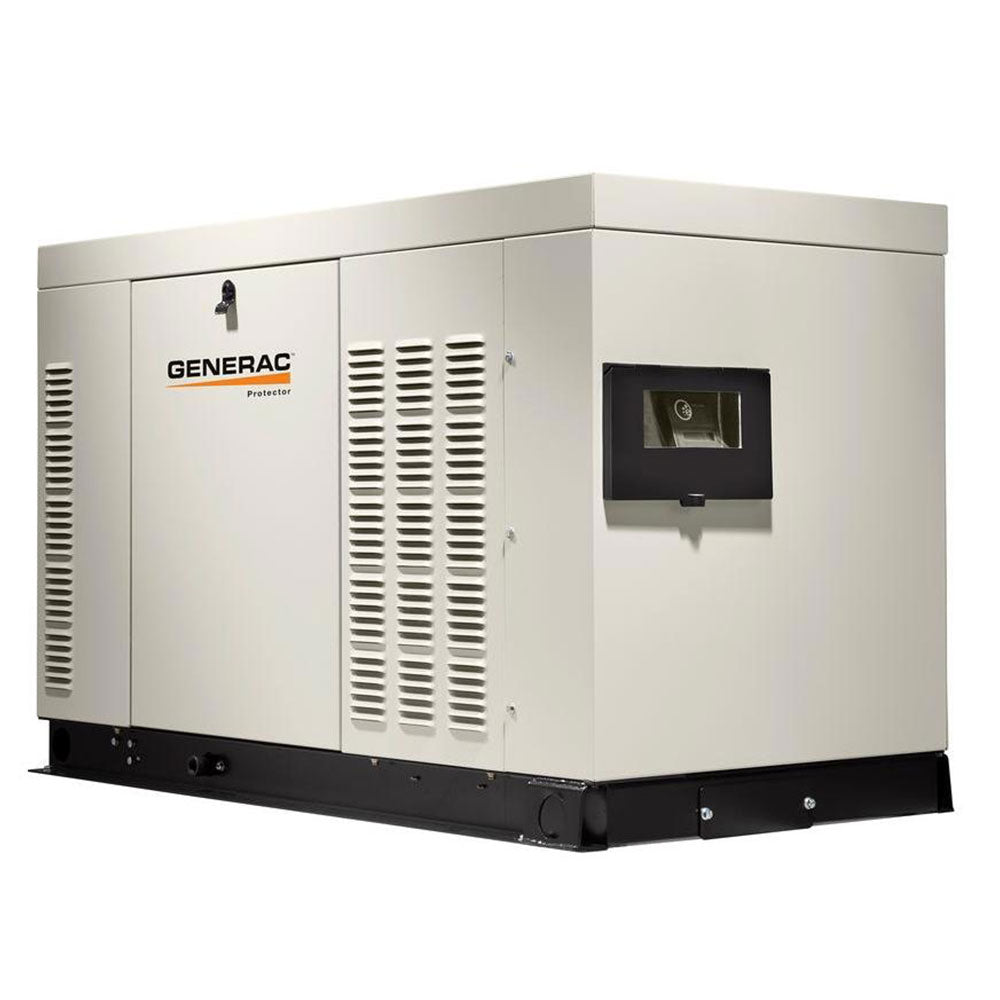

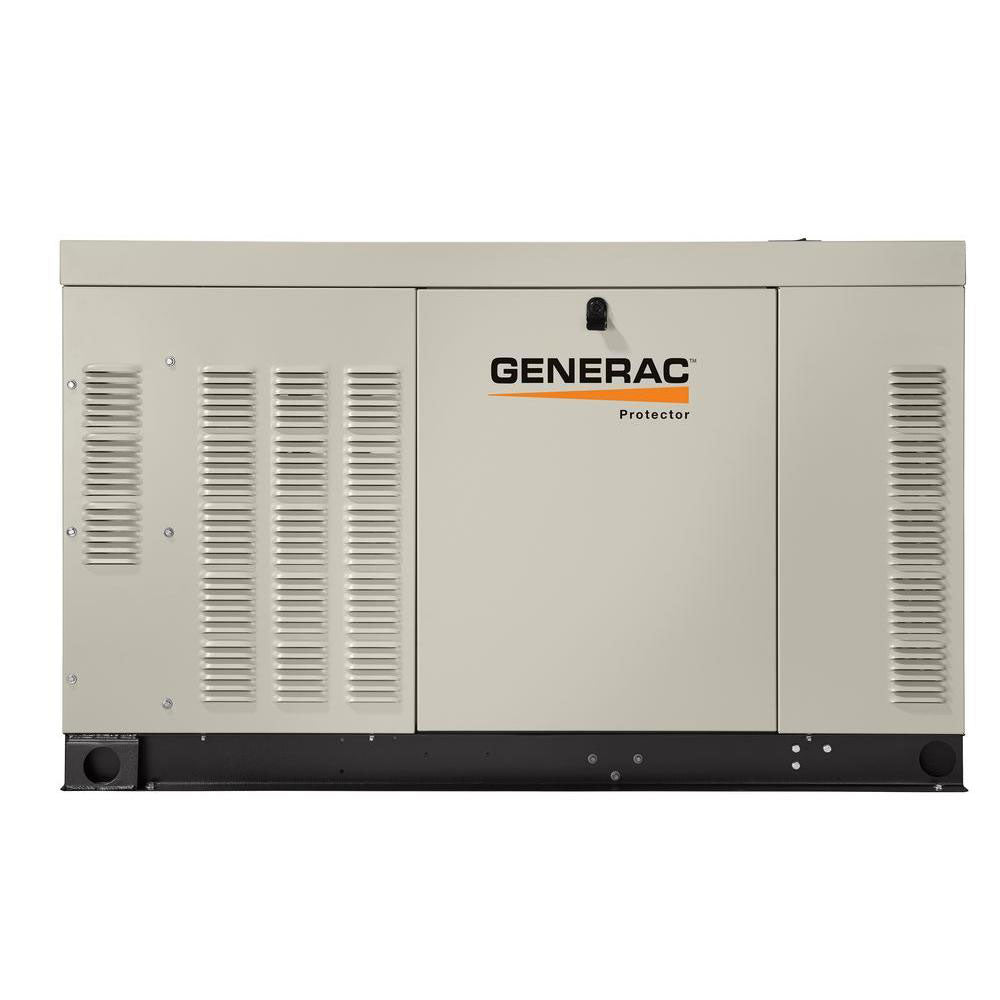

- Premium-Grade Standby Generator
- For small commercial buildings with 120/208V 3-Phase service
- Runs off natural gas or LP fuel supply
- Quiet-Test
- Low-speed exercise mode for quieter weekly tests; 61 dB at 23 ft
- Multi-Lingual Evolution Controller
- Two-Line LCD Display provides service and maintenance intervals

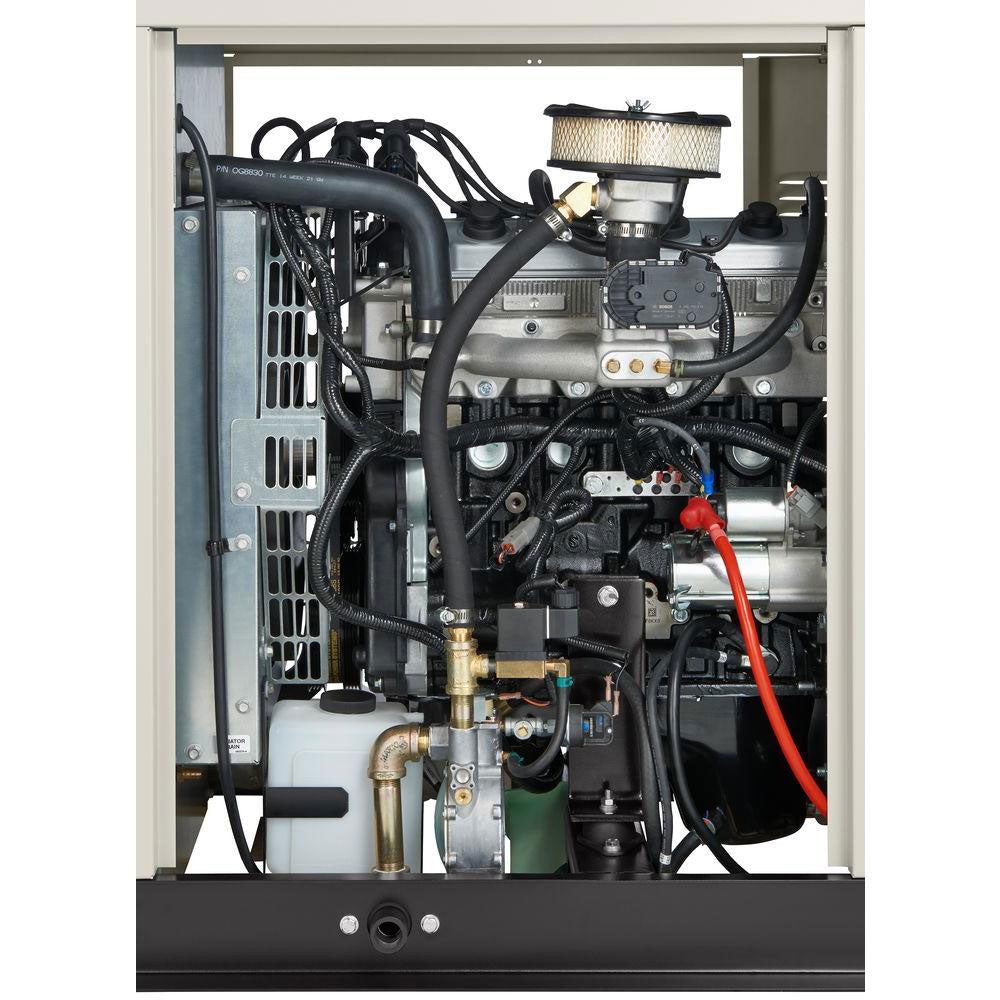

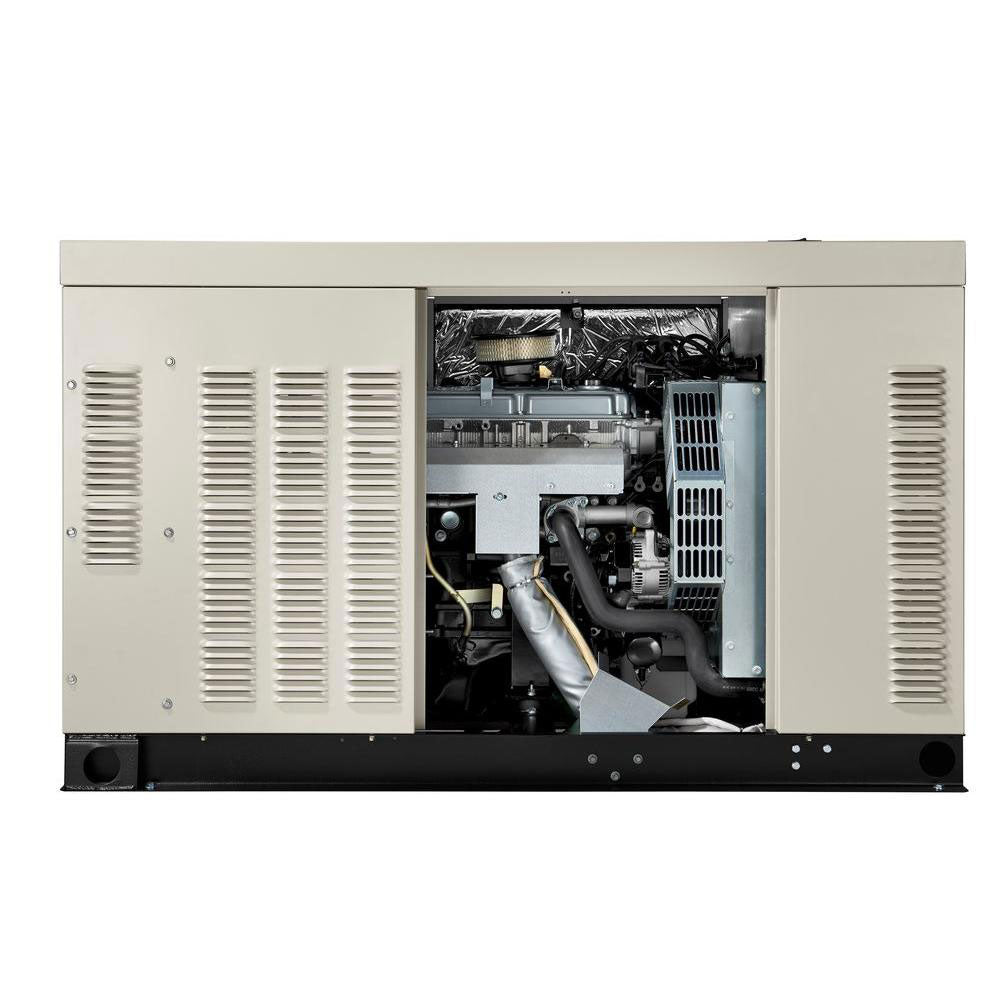

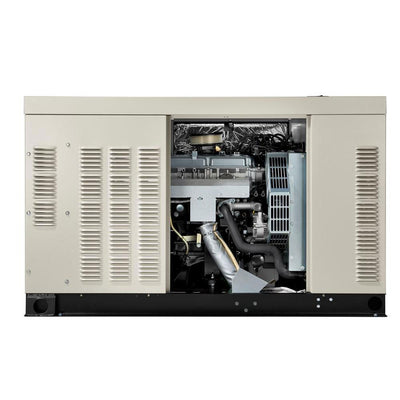

- Automotive-Style Engine
- Powerful Generac in-line 4-cylinder liquid-cooled engine
- Operates at half the speed of other engines (1800 vs 3600 RPM)
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
What's in The Box
- Generac 22kW 120/208V Protector QS Automatic Standby Generator NG/LP - RG02224GNAX
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
SKU | RG02224GNAX |
Brand | Generac |
Product Specs | |
Voltage | 120/208 3 Phase |
Frequency | 60 hertz |
Rated Watts | 22000 |
Fuel Type | LP/Natural Gas |
NG Fuel Consumption at 50 percent Load | 190 ft/hr |
NG Fuel Consumption at 100 percent Load | 316 ft/hr |
LP Fuel Consumption at 50 percent Load | 5 gallons |
LP Fuel Consumption at 100 percent Load | 9 gallons |
Rated Amps | 76 amps |
Decibel Rating | 61 test |
Transfer Switch | Automatic |
Enclosure | Aluminum |
Mounting pad | Concrete |
Cooling System | Liquid Cooled |
Engine | |
Engine Brand | Generac 2.4L 4-Cylinder |
Starting System | 12V Auto Start |
CC | 2400 |
RPM | 1800 |
Dimensions | |
Length | 62 in |
Width | 30 in |
Height | 38 in |
Weight | 843 lbs |
